マルチエフェクトを使用してみる(SD-90/80)

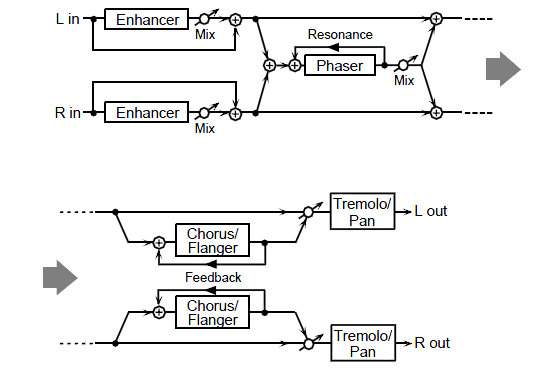

エンハンサー(EH)、フェイザー(PH)、コーラスまたはフランジャー(CF)、トレモロまたはパン(TP)を直列に接続しています。
No. | Display | Setting Value | Value Dec. | Initial |
1 | EH Switch | OFF, ON | 0 - 1 | 1 |
2 | EH Sens | 0 - 127 | 0 - 127 | 127 |
3 | EH Mix Level | 0 - 127 | 0 - 127 | 64 |
4 | PH Switch | OFF, ON | 0 - 1 | 1 |
5 | PH Mode | 4 stage, 8 stage | 0 - 1 | 1 |
6 | PH Manual | 0 - 127 | 0 - 127 | 64 |
10 | PH Mix Level | 0 - 127 | 0 - 127 | 64 |
7 | PH Rate | 0.05 - 10.0, note*2 | 1 - 222 | 10 |
8 | PH Depth | 0 - 127 | 0 - 127 | 64 |
9 | PH Resonance | 0 - 127 | 0 - 127 | 64 |
11 | CH/FL Switch | OFF, ON | 0 - 1 | 1 |
12 | CH/FL Type | CHORUS, FLANGER | 0 - 1 | 0 |
14 | CH/FL Rate | 0.05 - 10.0, note*2 | 1 - 222 | 10 |
15 | CH/FL Depth | 0 - 127 | 0 - 127 | 20 |
16 | CH/FL Feedback | -98 - +98 % | 0 - 98 | 89 |
13 | CH/FL PreDelay? | 0.0 - 100 | 0 - 125 | 10 |
19 | CH/FL Bal | D100:0W - D0:100W | 0 - 100 | 50 |
17 | Filter Type | OFF, LPF, HPF | 0 - 2 | 0 |
18 | Filter Cutoff | 200 - 8000 Hz (*1) | 0 - 16 | 7 |
20 | TRE/PAN Switch | OFF, ON | 0 - 1 | 1 |
21 | TRE/PAN Type | TREMOLO, AUTO PAN | 0 - 1 | 0 |
22 | TRE/PAN ModWave? | TRI, SQU, SIN, SAW1,SAW2 | 0 - 4 | 0 |
23 | TRE/PAN Rate | 0.05 - 10.0, note*2 | 1 - 222 | 80 |
24 | TRE/PAN Depth | 0 - 127 | 0 - 127 | 64 |
25 | Output Level | 0 - 127 | 0 - 127 | 127 |
(*1) 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000,
2500, 3150, 4000, 5000, 6300, 8000 Hz
